THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
See images clearly with improved screen clarity, transducer sensitivity and target separation.
Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.

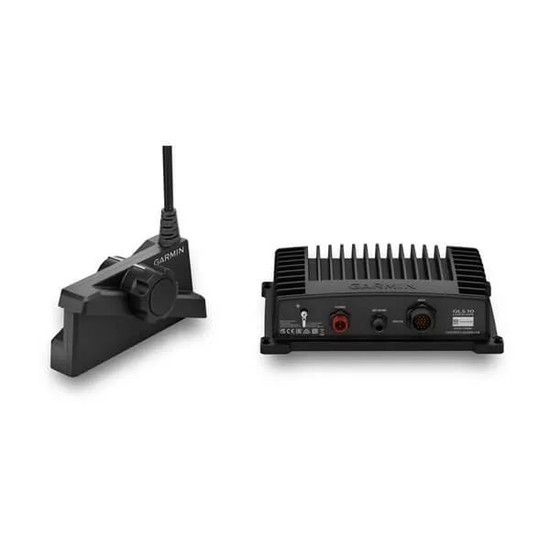

Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid color palettes.
Don't miss a thing with supported Forward, Down and Perspective modes and necessary mount.
General
DIMENSION
GLS 10 sonar black box: 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm);
LVS34 transducer: 6.4" x 3.1" x 1.9" (16.2 x 7.8 x 4.8 cm)
WEIGHT
GLS 10 sonar black box: 4.3 lbs (2.0 kg)
LVS34 transducer: 2.25 lbs (1.02 kg)
WATERPROOF IPX7
TRANSDUCER BEAMWIDTH 20° x 135°
TRANSDUCER CABLE LENGTH 20 ft
TRANSDUCER NUMBER OF PINS 21
TEMPERATURE RANGE
GLS 10 Black Box: Operating: -15 C to 70 C
Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C
Sonar Features & Specifications
FREQUENCY 530 - 1,100 kHz
MAXIMUM DEPTH Down and Forward: 200' (61.0 m)
SONAR TYPE Live
TARGET SEPARATION @100' 14"
PERSPECTIVE MODE MOUNT INCLUDED
Connections
GARMIN MARINE NETWORK PORTS
1 (small connector)
Electrical Features
POWER INPUT 10-32 V
POWER USAGE 21 W typical, 58 W max
TRANSMIT POWER 500 W
FUSE 7.5 A
COMPASS-SAFE DISTANCE 4" (0.1 m)
