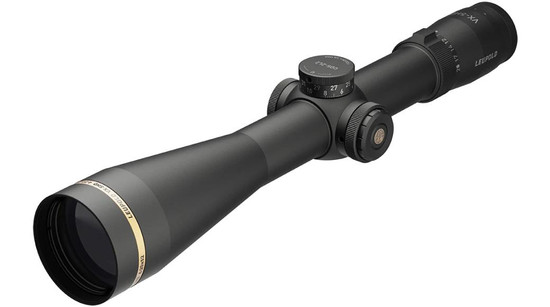

The VX®-5HD 4-20x52mm may just be that sweet spot you've been looking for in magnification ranges. Low enough magnification to get the job done in densely wooded areas, but with the horsepower at the top-end to make accurate shots at extreme distances. Plus, the low-profile CDS-ZL2 provides precise adjustments with the security of a push-button lock and two revolutions of adjustment.
The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold's Professional-Grade Optical System, it offers unmatched light transmission that's designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.
As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
- Brings new technology to a classic design
- Fiber-optic powered red dot
- Multiple brightness settings for changing conditions
- FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
- Broad range of shooting applications
- Rear (second) focal plane
Specs:
- Adjustable Objective No
- Reticle Focal Plane Second Focal Plane
- Elevation Adjustment Type CDS-ZL2
- Locking Dial Yes
- Revolution Indicator Yes
- Rezero Type Set Screw
- Windage Adjustment Type Pop-Up Rezero
- Custom Dial System (CDS) Yes
- Custom Dial Compatible Yes
- BDC Dial Included No
- Reticle Type Illuminated
- Reticle Illum. FireDot Duplex
- Light Management System Professional-Grade Optical System
- Magnification Type Variable
- Battery Type CR2032
- Switch Type Push Button
- Nightvision Compatible Illumination No
- Daylight Bright Illumination Yes
- Electronic Reticle Level No
- Weight (oz) 23.5
- Elevation Adjustment Value per Click 1/4MOA
- Elevation Adjustment Range (MOA) 75
- Elevation Adjustment Range (MIL) 22
- Elevation Adjustment Range (cm @ 100m) 218
- Elevation Adjustment Per Revolution 20 MOA
- Elevation Dial Travel Limit 38MOA
- Windage Adjustment Value per Click 1/4MOA
- Windage Adjustment Range (MOA) 75
- Windage Adjustment Range (MIL) 22
- Windage Adjustment Range (cm @ 100m) 218
- Windage Adjustment Per Revolution 15 MOA
- Magnification Max 20
- Magnification Min 4
- Objective Lens Diameter (mm) 52
- Linear FOV Low Mag (ft@100yds) 28.4
- Linear FOV High Mag (ft@100yds) 7.7
- Angular FOV Low Mag (Degrees) 5.4
- Angular FOV High Mag (Degrees) 1.5
- Eye Relief Low Mag (in) 3.7
- Eye Relief High Mag (in) 3.8
- Minimum Parallax-Free Distance (yd) 50
- Battery Life (hr), Low Intensity 1600
- Battery Life (hr), Medium Intensity 1000
- Battery Life (hr), High Intensity 300
- Number of Illum Settings 8
